blackmagic
Convertitori SDI-HDMI/HDMI-SDI
€10.00 + iva
Disponibili SDI to HDMI, HDMI to SDI e BiDirectional SDI/HDMI
I nuovi Blackmagic Micro Converter sono piccolissimi convertitori video di fascia broadcast che permettono di interconnettere dispositivi HDMI di consumo e SDI professionali. Grazie al design robusto e miniaturizzato arrivano ovunque! Offrono connessioni professionali 3G-SDI o 12G-SDI a seconda del modello per lavorare nei formati SD, HD e Ultra HD fino al 2160p60. I Micro Converter si possono alimentare tramite USB direttamente da televisori e laptop, e acquistare anche senza l’alimentatore! Solo i Blackmagic Micro Converter vantano componenti elettronici su misura conformi alle specifiche del broadcast globale e sono aggiornabili agli standard futuri.
SPECIFICHE TECNICHE
CONTENUTO DEL PACCHETTO
| SDI-HDMI | |
| Video Inputs | 1 x BNC (3G-SDI) |
| Audio Inputs | None |
| Video Outputs | 1 x BNC (3G-SDI) (Loop Output) |
| 1 x HDMI | |
| Audio Outputs | None |
| Other I/O | 1 x USB-C Input |
| Expansion Slots | None |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2KPsF 25/29.97/30 fps | |
| 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080PsF 25/29.97/30 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 59.94 fps | |
| 576i / 625 lines 50 fps | |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2KPsF 25/29.97/30 fps | |
| 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080PsF 25/29.97/30 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 29.97 fps | |
| 576i / 625 lines 25 fps | |
| HDMI (8/10-Bit 4:2:2 RGB, YUV) | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 29.97 fps | |
| 576i / 625 lines 25 fps | |
| Embedded Audio | HDMI/SDI |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | , Version 2.2 |
| Tally Light | Yes |
| Wi-Fi | None |
| OS Compatibility | macOS 10.14.15 or Later |
| Windows 10 | |
| *As of November, 2020: Check with manufacturer for the most up-to-date compatibility | |
| Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
| Power Consumption | 2.5 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 3.01 x 1.8 x 0.98″ / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |

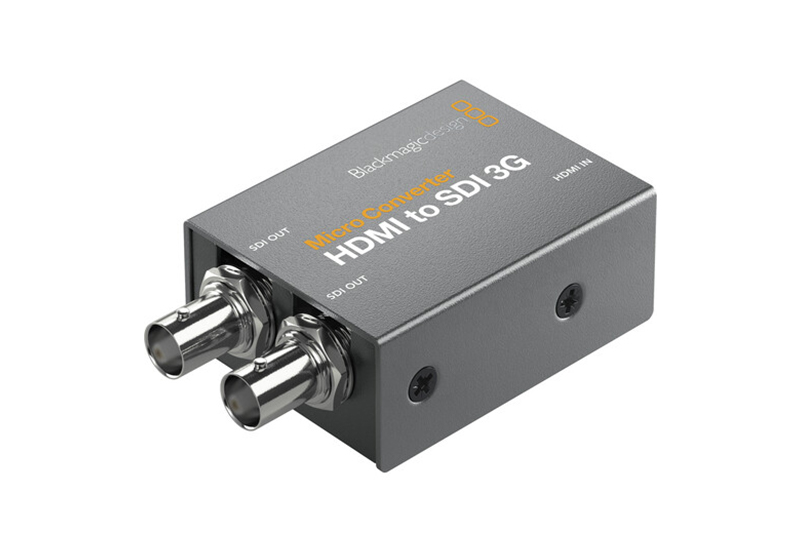

| HDMI-SDI | |
| Video Inputs | 1 x HDMI (HDMI 2.0) |
| Audio Inputs | None |
| Video Outputs | 2 x BNC (3G-SDI) |
| Audio Outputs | None |
| Other I/O | 1 x USB-C Input |
| Expansion Slots | None |
| Input Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 29.97 fps | |
| 576i / 625 lines 25 fps | |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2KPsF 25/29.97/30 fps | |
| 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080PsF 25/29.97/30 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 29.97 fps | |
| 576i / 625 lines 25 fps | |
| Embedded Audio | HDMI/SDI |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M |
| HDCP Support | , Version 2.2 |
| Wi-Fi | None |
| OS Compatibility | macOS 10.14.15 or Later |
| Windows 10 | |
| *As of November, 2020: Check with manufacturer for the most up-to-date compatibility | |
| Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
| Power Consumption | 2 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 3.01 x 1.8 x 0.98″ / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |

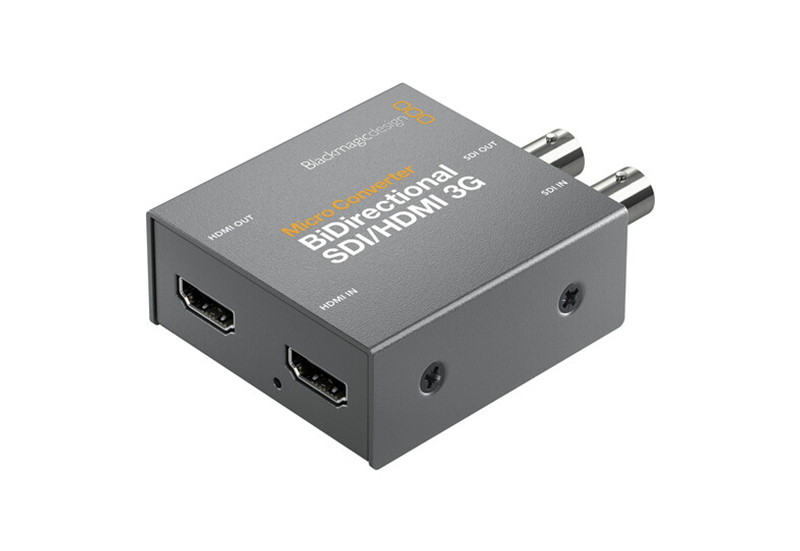

| Bidirectional HDMI-SDI | |
| Video Inputs | 1 x BNC (3G-SDI) |
| 1 x HDMI (HDMI 2.0) | |
| Audio Inputs | None |
| Video Outputs | 1 x BNC (3G-SDI) |
| 1 x HDMI (HDMI 2.0) | |
| Audio Outputs | None |
| Other I/O | 1 x USB-C Input |
| Expansion Slots | None |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2KPsF 25/29.97/30 fps | |
| 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080PsF 25/29.97/30 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 59.94 fps | |
| 576i / 625 lines 50 fps | |
| HDMI (8/10-Bit 4:2:2 RGB, YUV) | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 29.97 fps | |
| 576i / 625 lines 25 fps | |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2KPsF 25/29.97/30 fps | |
| 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080PsF 25/29.97/30 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 480i / 525 lines 29.97 fps | |
| 576i / 625 lines 25 fps | |
| Embedded Audio | HDMI/SDI |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | , Version 2.2 |
| Tally Light | Yes |
| Wi-Fi | None |
| OS Compatibility | macOS 10.14.15 or Later |
| Windows 10 | |
| *As of November, 2020: Check with manufacturer for the most up-to-date compatibility | |
| Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
| Power Consumption | 2.5 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 3.18 x 2.32 x 0.98″ / 80.77 x 58.93 x 24.89 mm |
| Weight | 6.13 oz / 174 g |
- Convertitore

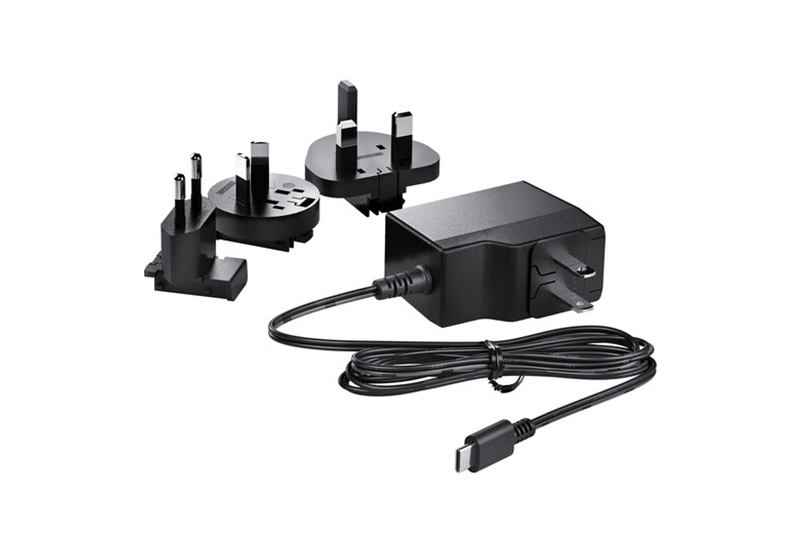

- Alimentatore
