arri

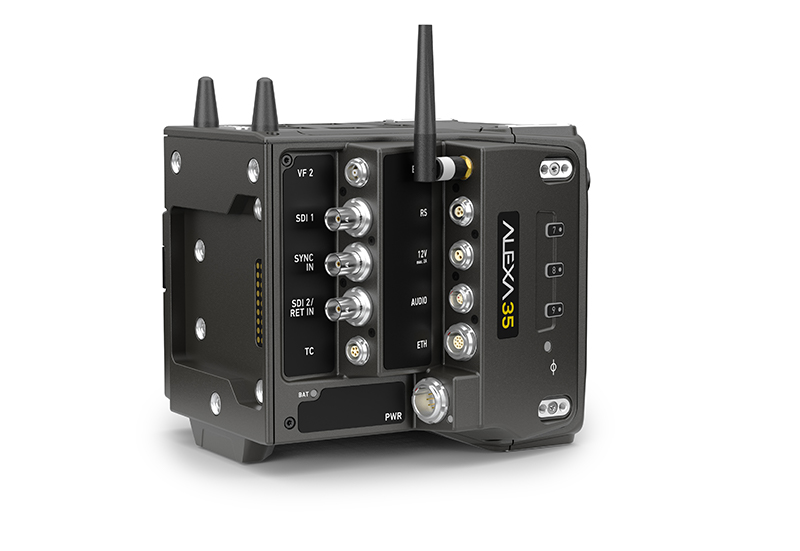

ALEXA 35

€700.00/900.00/1400.00 + iva (necessaria assicurazione)

Videocamera – Cinecamera – Cinécaméra – Cámara de cine



ARRI alza ancora una volta il livello del cinema digitale con ALEXA 35. Lo standard della famiglia Alexa viene ulteriormente elevato grazie al nuovo sensore Super 35 formato 4.6K e alla tecnologia REVEAL Color Science.

Rispetto ai modelli precedenti Alexa 35 aggiunge 1,5 stop sulle alte luci e 1 stop sulle ombre che garantiscono prestazioni migliorate in condizioni di scarsa illuminazione e colori più ricchi e accurati.

La maggiore gamma dinamica e il controllo delle alte luci semplificano la gestione di qualsiasi condizione di illuminazione sul set, aumentano la flessibilità in post e fornendo la migliore sorgente possibile per progetti HDR (High Dynamic Range).

Compatta e facile da usare, ALEXA 35 offre l’acquisizione sia MFX/ARRIRAW che MFX/Apple ProRes su unità Codex da 1 o 2TB con risoluzioni fino a 4,6K e frame rate fino a 120p.

SPECIFICHE TECNICHE

CONTENUTO DEL PACCHETTO

CAMERA SET: 700 EURO

PRODUCTION SET: 900 EURO

COMPLETE SET: 1400 EURO

ACCESSORI EXTRA

Imaging
Lens Mount ARRI LPL
ARRI PL with Included Adapter
Lens Communication Yes
Sensor Resolution Not Specified by Manufacturer
Image Sensor Super35 CMOS
Pixel Pitch 6.075 µm
Image Stabilization None
Built-In ND Filter Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Internal Filter Holder No
Capture Type Video Only
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/8000 to 1 Second
ISO Sensitivity 160 to 6400
Shutter Angle 5 to 356°
Advertised Dynamic Range 17 Stops
White Balance 2000 to 11,000K
Video Capture
Internal Recording Modes ARRIRAW
4608 x 3164 from 0.75 to 75 fps
4608 x 2592 from 0.75 to 75 fps
4096 x 2304 from 0.75 to 120 fps
4096 x 2048 from 0.75 to 120 fps
3328 x 2790 from 0.75 to 100 fps
3072 x 3072 from 0.75 to 100 fps
MXF/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ 12-Bit
4608 x 3164 from 0.75 to 59.94 fps
4096 x 2304 from 0.75 to 100 fps
4096 x 2048 from 0.75 to 120 fps
3840 x 2160 from 0.75 to 120 fps
3328 x 2790 from 0.75 to 75 fps
3072 x 3072 from 0.75 to 90 fps
2048 x 1152 from 0.75 to 120 fps
External Recording Modes None
Sensor Crop Modes Super16
2K (2048 x 1152)
Sensor Crop While Recording 4.6K (4608 x 2592) in 16:9
4K (4096 x 2048) in 2:1
4K (4096 x 2034) in 16:9
4K (4096 x 1716) in 2.39:1 When Recording in Anamorphic
3.8K (3840 x 2160) in 16:9
3.3K (3328 x 2790) in 6:5
3.8K (3840 x 1920) in 2:1 When Recording in Anamorphic
3K (3072 x 3072) in 1:1
2.7K (2743 x 3086) in 8:9
2K (2048 x 1152) in 16:9
1080p (1920 x 1080) in 16:9
Fast-/Slow-Motion Support Yes
Gamma Curve ARRI Log C4, Rec 2100 HLG, Rec 2100 PQ, Rec709, Rec2020
Built-In Microphone Type Stereo
Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio
IP Streaming None
Interface
Media/Memory Card Slot Single Slot: Codex Compact Drive
Video I/O 1 x BNC (12G-SDI) Output
1 x BNC (12G-SDI) Input/Output
Audio I/O 1 x LEMO 6-Pin Line Input
1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Headphone Output
Power I/O 1 x LEMO 8-Pin (20.5 to 33.6VDC) Input
Other I/O 2 x CoaXPress Viewfinder
1 x LEMO 4-Pin Control Input/Output
1 x LEMO 4-Pin (Serial) Data Input/Output
1 x LEMO 5-Pin (Timecode) Input/Output
1 x LEMO 10-Pin (Ethernet) Control
1 x BNC (Sync) Input/Output
1 x USB-C Data Input/Output
1 x Pogo 5-Pin
1 x pogo 18-Pin
Wireless Wi-Fi (802.11b/g) Control
Mobile App Compatible Yes
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.) None
Monitor
Size 4″
Resolution 800 x 400
Display Type Included External LCD
Secondary Display Side: LCD Status Display
Viewfinder
Type Removable Electronic (OLED)
Resolution 1920 x 1080
Focus Type Manual Focus Only
Environmental
Operating Temperature 12 to 77°F / -20 to 45°C
Storage Temperature -22 to 158°F / -30 to 70°C
General
Power Consumption 90 W
Tripod Mounting Thread 1/4″-20 Female
3/8″-16 Female
Material of Construction Aluminum
Dimensions (W x H x D) 8 x 6 x 5.8″ / 203 x 152.5 x 147 mm
Weight 6.4 lb / 2.9 kg
  • Alexa 35
  • Alimentatore a rete 24V

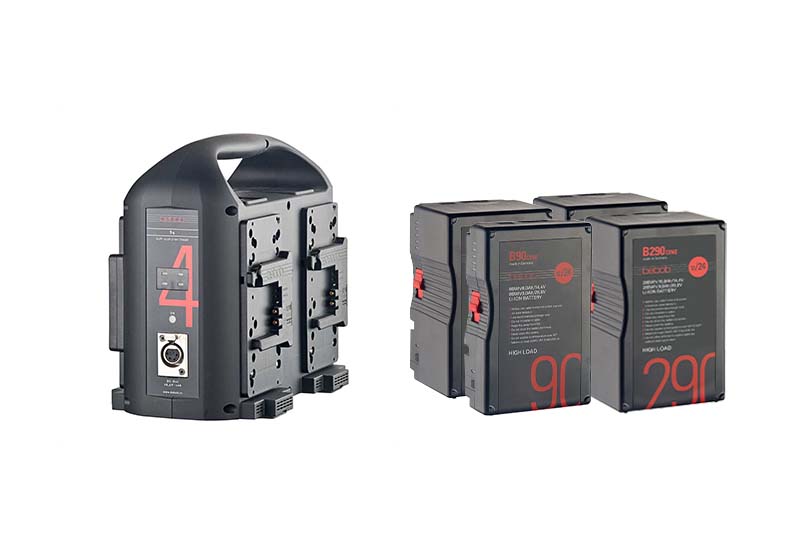

  • Hotswap B-mount battery b90cinehs dual voltage
  • 2x B-mount battery b90cine dual voltage
  • 3x B-mount battery b290cine dual voltage
  • Caricabatterie B-mount 4 slot + cavo
  • KC50-S 24V AC adapter cable
  • Bottom dovetail plate 300mm/12in
  • CBP-5 shoulder plate
  • Piastra BUD1
  • CSB-1L left side plate
  • CSB-1R right side plate
  • LMS-4 top plate
  • CSB-1R right side extension
  • TEB-1 top extension bracket
  • CCH-5 top handle
  • SAS-1 view finder rod support
  • VMB-5 view finder bracket
  • RMB-7 side rod attachment
  • Articoulated mounting plate
  • MVF-2 viewfinder
  • SAM-9 stabilizer adapter mount
  • SAM-U-1 universal adapter mount
  • 2x Canna 15mm lungha 18cm
  • 2x Canna 19mm lungha 9cm
  • 2x Canna 19mm lungha 16cm
  • 2x Canna 19mm lungha 24cm
  • 2x Canna 19mm lunghe 35cm
  • Supporto lente per canne Tilta 19mm
  • Riduttore canne da 19mm a 15mm
  • EF mount lbus
  • Adattatore LPL to PL
  • Lettore schede codex
  • 3x Codex compact drive 1TB
  • 1x Codex compact drive 2TB
  • USB type C
  • USB dongle
  • 2x Cavo VF right angle 0,5m
  • Cavo VF 2m
  • Connettore audio con cavo
  • UH-T04 15/19 rode handle attachment
  • 2x Handle
  • Cacciaviti (Denk-Calden SW 3×75)
  • Case di trasporto

Alexa 35 camera body

  • LPL mount + EF mount + PL adapter
  • EVF with integrated monitor
  • Power supply
  • 6x B-mount batteries
  • 4 slot B-mount charger
  • 3x Codex drive 1tb
  • 1x Codex drive 2tb
  • USB3 codex drive reader
  • Cage with upper handle
  • Base plate
  • Shoulder mount
  • Base dovetail
  • 2x 15mm rods
  • 2x 19mm rods
  • Front handles
  • Aluminum transport case

Alexa 35 camera body

  • LPL mount + EF mount + PL adapter
  • EVF with integrated monitor
  • Power supply
  • 6x B-mount batteries
  • 4 slot B-mount charger
  • 3x Codex drive 1tb
  • 1x Codex drive 2tb
  • USB3 codex drive reader
  • Cage with upper handle
  • Base plate
  • Shoulder mount
  • Base dovetail
  • 2x 15mm rods
  • 2x 19mm rods
  • Front handles
  • Aluminum transport case



Angenieux EZ kit

  • EZ1 30-90 t2 s-35 PL
  • EZ-2 15-40 t2 s-35 PL
  • EZ-3 45-165 t3 s-35 PL



or Cooke Mini s4/i kit



  • Mini s4/1 18mm t2.8 PL
  • Mini s4/1 25mm t2.8 PL
  • Mini s4/1 32mm t2.8 PL
  • Mini s4/1 50mm t2.8 PL
  • Mini s4/1 75mm t2.8 PL
  • Mini s4/1 100mm t2.8 PL



or Atlas Orion 2x Anamorphic kit

  • Orion 32mm t2 PL
  • Orion 40mm t2 Pl
  • Orion 65mm t2 PL
  • Orion 100mm t2 PL
  • Orion extender 1,6x PL

Alexa 35 camera body

  • LPL mount + EF mount + PL adapter
  • EVF with integrated monitor
  • Power supply
  • 6x B-mount batteries
  • 4 slot B-mount charger
  • 3x Codex drive 1tb
  • 1x Codex drive 2tb
  • USB3 codex drive reader
  • Cage with upper handle
  • Base plate
  • Shoulder mount
  • Base dovetail
  • 2x 15mm rods
  • 2x 19mm rods
  • Front handles
  • Aluminum transport case



Angenieux EZ kit

  • EZ1 30-90 t2 s-35 PL
  • EZ-2 15-40 t2 s-35 PL
  • EZ-3 45-165 t3 s-35 PL



or Cooke Mini s4/i kit



  • Mini s4/1 18mm t2.8 PL
  • Mini s4/1 25mm t2.8 PL
  • Mini s4/1 32mm t2.8 PL
  • Mini s4/1 50mm t2.8 PL
  • Mini s4/1 75mm t2.8 PL
  • Mini s4/1 100mm t2.8 PL



or Atlas Orion 2x Anamorphic kit

  • Orion 32mm t2 PL
  • Orion 40mm t2 Pl
  • Orion 65mm t2 PL
  • Orion 100mm t2 PL
  • Orion extender 1,6x PL



Cartoni Maxima 30 Fluid head

  • Cartoni 150mm long legs
  • Cartoni 150mm short legs



ARRI FF-5 Cine Follow focus

  • Dual side 15mm bridge
  • 15mm to 19mm rods adapter
  • Speed crank
  • 30cm whiplash



ARRI Hi-5 Remote focus set

  • 3x C-force mini motor
  • 4x Lbus cables
  • Hi-5 controller
  • Monitor mount for controller
  • 2x ARRI batteries
  • Battery charger



Teradek Bolt lt 750 Wireless video

  • Bolt 4k lt 750 transmitter
  • Bolt 4k lt 750 receiver
  • 2x D-tap to lemo power cable
  • 4x SDI cable

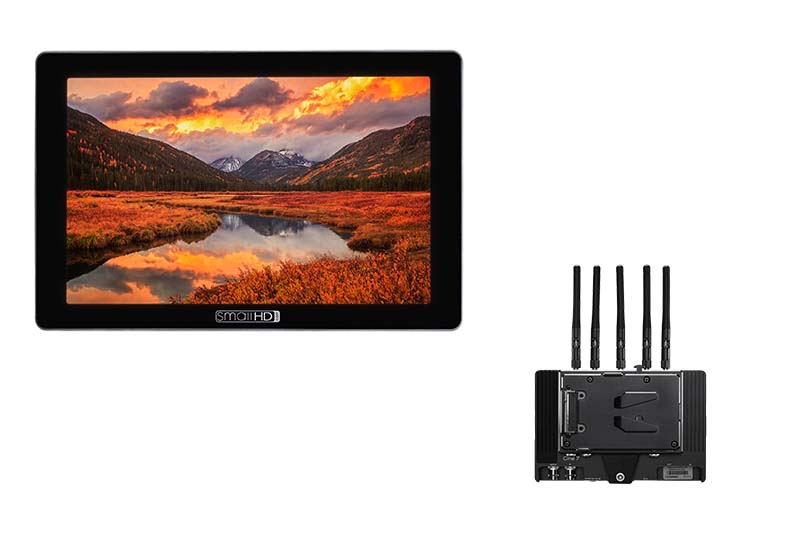

2x Smallhd Cine-7 Wireless monitor

  • 4x V-mount monitor batteries
  • 2x Single battery charger
  • 2x Neck belt
  • 4x Side handles



Smallhd 13″ 4k Production monitor

  • 4x V-mount monitor batteries
  • Dual slot battery charger
  • Light shader
  • Wheeled monitor stand

Kit alimentazione: +50€+iva

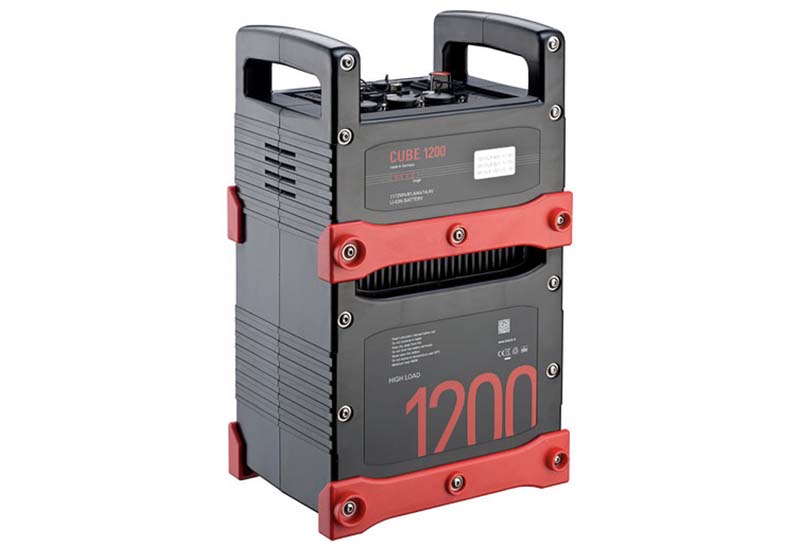

CUBE 1200 Multi-Voltage Battery



Distribution module: +0€+iva

PDM-1 power distribution module



FXLION FX-BM24D Adapter Plate for ARRI: +0€+iva

V-Lock to B-Mount Adapter



PERFECT MATCH WITH

perfect match with

ORION Anamorphic 2X S35 T2 primes set

atlas ORION Anamorphic 2X S35 T2 primes set

€100.00/350.00 + iva (necessaria assicurazione)
